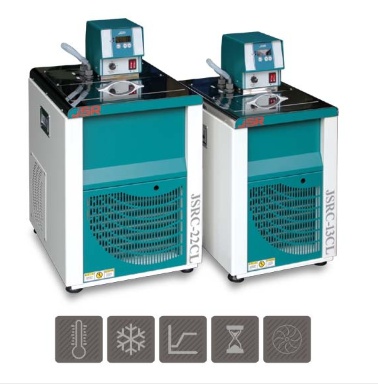

저온순환수조 최대 40 ° C의 온도에 도달 할 수 있고 다양한 실험실 가열 및 냉각 어플리케이션을 위해 최대 120 ° C까지 가열 할 수있는 가열 / 냉장 순환 개방형 욕조 시스템. 욕조 내의 열 유체의 내부 순환은 ± 0.1 ° C 내에서 정밀한 균일 성을 허용합니다. 순 환 펌프는 가열되거나 냉각 된 열 유체를 반응기, 응축기, 회전식 증발기 또는 크로마토 그래피 칼럼, 점도계 및 농도계와 같은 실험실 장비의 온도 제어와 같은 어플리케이션과 같은 외부 장비로 순환시킵니다. 외부 순환 펌프 용량 10 리터 / 분. 유속 및 0.5bar의 압력.
Specifications
Heating
Direct Immersion Sheath Heater
With internal/external circulation pump
Cooling
CFC Free Air Cooled Compressor
Temp. Range
ambient -40.0°C ~ 120.0°C
Accuracy
± 0.1°C at -10.0°C (JSRC-13CL)
Uniformity
± 0.3°C at -10.0°C (JSRC-13CL)
Control
Microprocessor PID Control Auto START / STOP Timer
Sensor
Class A Pt-100 Ω Sensor
Circulation
Stainless Steel Immersion Pump
Safety
Over-Temperature Cut-Off
Over Current Cut-Off
Low Water Level Cut-Off
Material
Body - Epoxy Powder Coated Steel
Bath – Electro-polished Seamless Stainless Steel 304
Lid – Polished Stainless Steel 304
Electric
220±10% VAC 50/60Hz 1-Phase
Plug config.
CEE 7/7 Schuko or BS 1363
Models
Art No.
06CL
13CL
22CL
30CL
Bath Volume (Capacity)
7 L
11 L
20 L
30 L
Dimensions
Inner
155 x 300 x 150
240 x 300 x 150
300 x 330 x 200
300 x 500 x 200
W x D x H mm
Usable
155 x 90 x 150
240 x 120 x 150
300 x 150 x 200
295 x 315 x 200
Outer
290 x 470 x 730
370 x 450 x 730
430 x 480 x 780
430 x 670 x 780
Temperature Range
-40°C to 120°C
Accuracy at 37.0°C
± 0.1°C
Uniformity at 37.0°C
± 0.3°C
Water Circulation
Stainless Steel Immersion Circulation Pump
Drain Valve
Yes
Inlet/Outlet Fitting
∅9 mm hose barb
Heater Capacity
700 Watt
800 Watt
1.2 kW
1.6 kW
Refrigeration System
Power Rating
6.7 Amp
8.0 Amp
9.8 Amp
11.6 Amp
Power Plug
CEE 7/7 Schuko European Standard or BS 1363 British Plug
Features
Controller
JSC-0D Digital PID Controller
±0.1°C Digital PID Controller with LED Display
Automatic START/STOP timer
Adjustable timer scale 99min 59sec / 99hr 59min / 99day 23hr or continuous operation
Temperature calibration
Auto-tuning function
Class A Pt-100 Ω sensor
Construction
Durable epoxy powder coated metallic casing
Corrosion resistant Seamless Stainless Steel 304 bath
Corrosion resistant Stainless Steel 304 sheath immersion heater
Corrosion resistant Stainless Steel 304 lid
Perforated stainless steel heater and pump cover
Performance
Temperature range from -40°C to 120°C
Excellent control accuracy within ± 0.1°C and thermal uniformity within ± 0.3°C
High efficiency heating and cooling system allows short heat-up and cool-down times
Corrosion resistant Stainless Steel 304 sheath immersion heater and cooling coil controls bath temperature quickly and precisely
Stainless steel immersion circulation pump circulates thermal fluid within the bath for higher temperature uniformity or circulates thermal fluid to external closed loop with flow rate 10 liter/min and 0.5 bar in pressure
Convenience
Easy to clean Electro-Polished Seamless Stainless Steel 304 Bath
Drain for easy emptying of the bath fluid
Supplied with stainless steel flat cover to help reduce heat losses and evaporation
Easy to connect ∅9 mm hose barb fitting for external circulation
Dust accumulation in refrigeration system is easily cleaned by means of an removable venting grill
DUAL OVER TEMP. CUT-OFF
Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature
Analog system cut-off heater 10% above set temp.
MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit
SENSOR DISCONNECTION ALARM
LOW WATER LEVEL CUT-OFF
OVER CURRENT CUT-OFF : Fuse
Ordering Information
Descriptions
Elec. Req.
Capacity
Net Wt.
Ship Wt.
JSRC-06CL
Refrigerated Circulation Bath
220 VAC 50/60 Hz
25 kg
29 kg
JSRC-13CL
35 kg
39 kg
JSRC-22CL
45 kg
52 kg
JSRC-30CL
53 kg
60 kg
