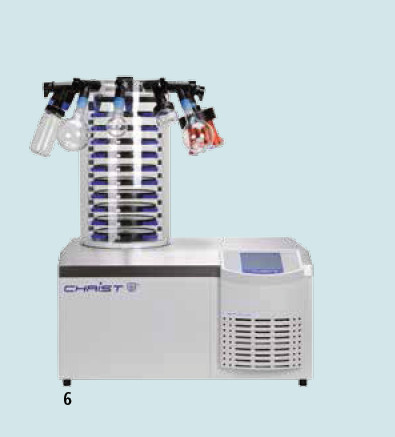

Freeze dryer BETA 2-8 LD plus
Total ice capacity 8 kg, Ice condenser temperature –85°C.
Universal laboratory freeze dryer for routine applications: low ice condenser temperature allow drying of samples containing organic solvents (e.g. alcohols); with new user friendly unit control "LYO Display LDplus":
LDplus (Lyo Display Plus) stands for a comfortable, easy-to-use and self-explaining user interface for controlling routine freeze drying processes, combining functionality and convenient operation:
Suitable for drying in12 or 24 round bottom flasks, wide neck filter bottles, ampoules and on 3 or 5 unheated shelves Ø 265 mm or 5 unheated shelves Ø 360 mm, alternatively sealing device with 2 or 4 unheated shelves Ø 250 mm).
Technical Data
Ice condenser capacity
max. 8 kg
Ice condenser performance
max. 6 kg/24 h
Ice condenser temperature
approx. -85°C
Shelf temperature when pre-freezing inside the ice condenser chamber
approx. -50°C
Max. shelf surface area when drying outside the ice condenser chamber
5 shelves ø 360 mm ^= 0.5 m2
Max. shelf surface area when drying in injection vials with stoppering under vacuum or nitrogen atmosphere
4 shelves ø 250 mm ^= 0.18 m2
Drying in round bottom flasks
max. 24 pieces
Dimensions of base unit
width: 780 mm height: 415 mm depth: 545 mm
Weight
78 kg
Electrical connection (other voltages available)
230 V, 50 – 60 Hz
Max. power consumption
approx. 1.84 kVA
Max. current
approx. 8 A
Max. ambient temperature (unit is air-cooled, higher temperatures upon request)
climate category SN +10°C to +32°C
